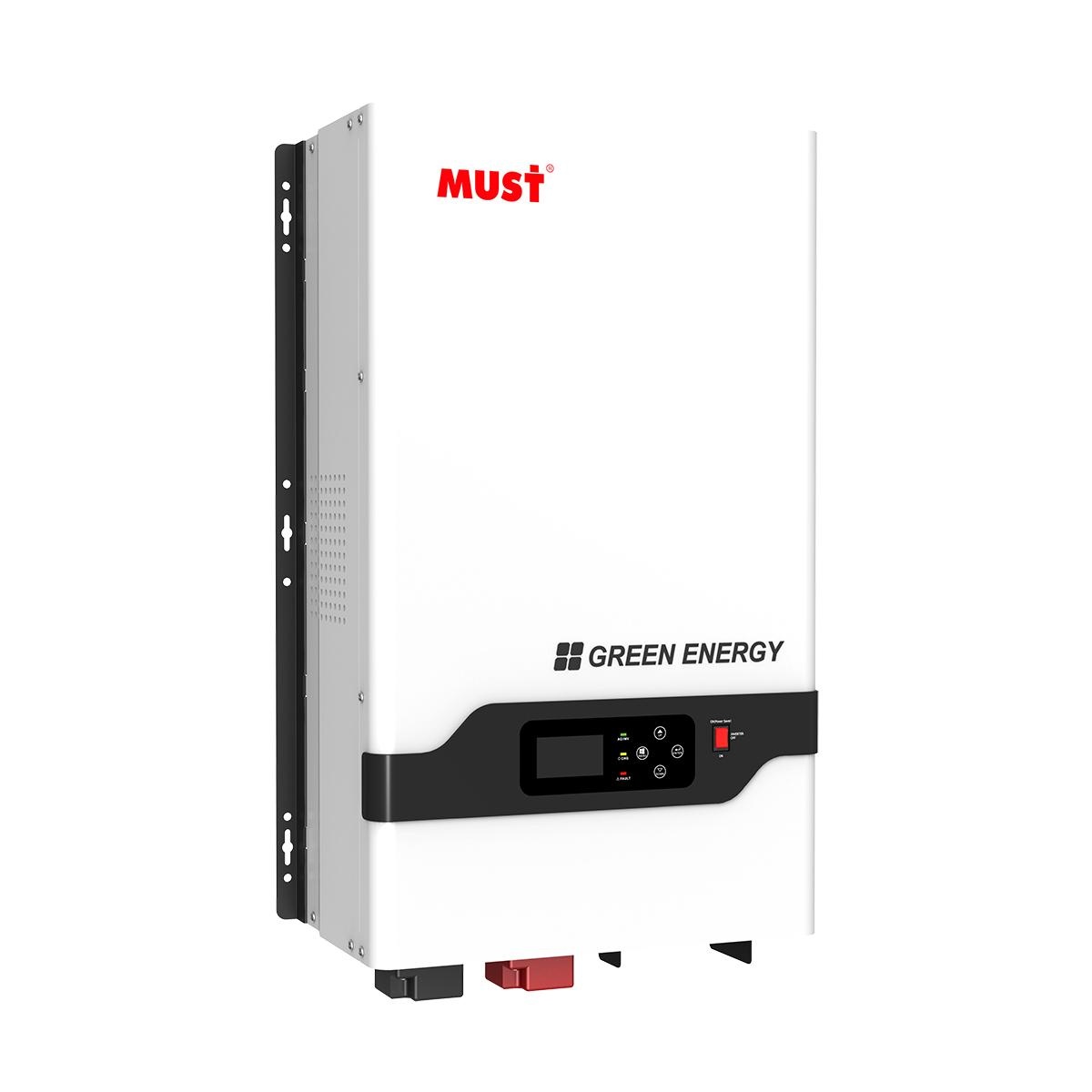

MUST 10KVA Hybrid Solar Inverter – 48V Pure Sine Wave

The MUST 10KVA Hybrid Solar Inverter is a powerful all-in-one solar solution featuring a 10,000W pure sine wave inverter, dual MPPT solar charge controllers, and intelligent battery management. Designed for homes, commercial buildings, farms, and industrial applications, it supports both Lithium and Lead Acid batteries, delivering reliable, efficient, and uninterrupted power.

Key Features

• 10,000W (10KVA) Pure Sine Wave Output
• 48V Battery System
• Built-in Dual MPPT Solar Charge Controllers
• Supports up to 10,000W Solar Panel Input
• Maximum PV Voltage: 500V DC
• MPPT Voltage Range: 90–430V DC
• Compatible with Lithium & Lead Acid Batteries
• Solar, Grid & Generator Charging
• 10ms UPS Transfer Time
• LCD Display
• Optional Wi-Fi Remote Monitoring
• Parallel Operation (Up to 6 Units)
• Intelligent Cooling Fan
• Multiple Built-in Protection Features

Specifications

• Rated Power: 10,000W (10KVA)
• Battery Voltage: 48V DC
• Max Solar Charging Current: 150A
• Max PV Input Power: 10,000W
• Maximum PV Open Circuit Voltage: 500V DC
• Output Voltage: 230VAC
• Output Frequency: 50/60Hz
• Peak Efficiency: 92%
• MPPT Efficiency: Up to 98%
• Cooling: Intelligent Fan
• Installation: Wall Mounted

Applications

Ideal for large homes, offices, commercial buildings, hotels, farms, workshops, backup power systems, and off-grid or hybrid solar installations.
